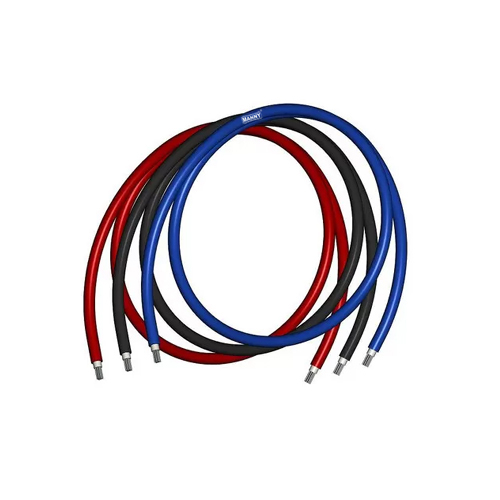

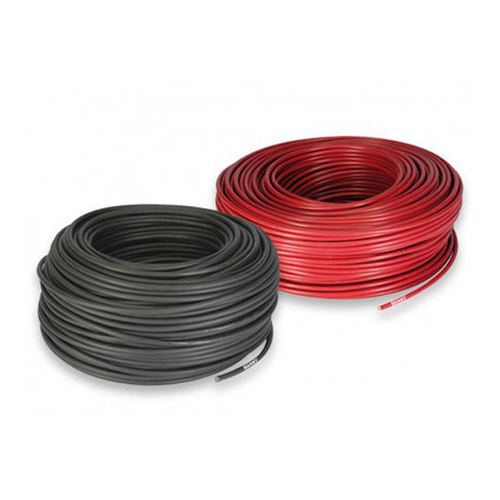

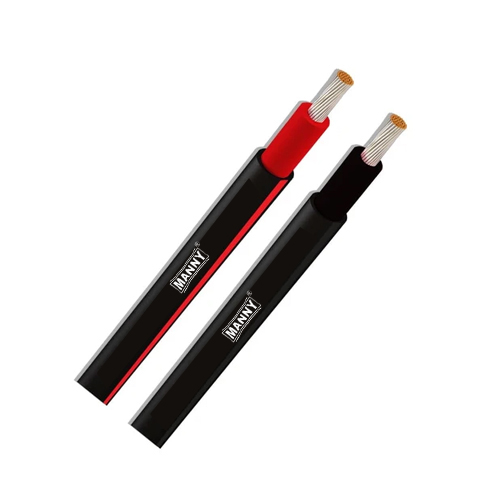

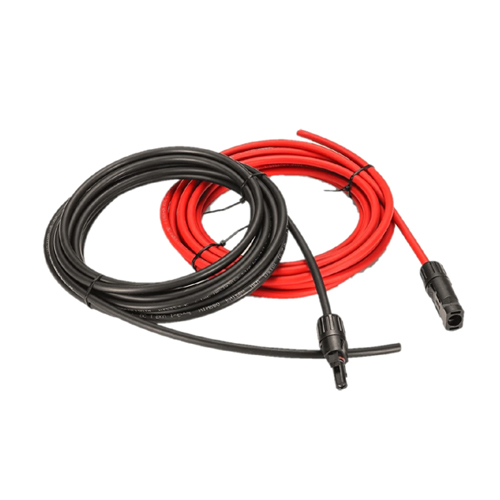

Solar Cables

Solar cable is the interconnection cable used in photovoltaic power generation. A solar cable interconnects solar panels and other electrical components of a photovoltaic system. Solar cables are designed to be UV resistant and weather resistant.

Applications

Solar energy is the creation of photovoltaic power (PV) by capturing sunlight. The energy is used for solar heating, and because of the energy conversion, it can be used to generate electricity as well. Therefore, the demand of solar cables is also increasing. Solar cable is the interconnection cable used in photovoltaic power generation. A solar cable interconnects solar panels and other electrical components of a photovoltaic system. Solar cables are designed to be UV resistant and weather resistant. Our Cables achieves the distinction of one of the leading solar cable manufacturers in India.

Advantages

They are designed to withstand high temperatures, and they are UV resistant, superb FR properties. As one of the leading solar cable manufacturers we assures you of the quality of the cables.
We are, one of the leading manufacturers of solar cables in India is committed to make cable of the highest quality. It is one of best solar cables manufactures as the company is making powerful and efficient cables for the solar industry.

Technical Specification

Voltage Rating: U0/U=600/1000 V AC, 1800 V DC.
Test Voltage: 6.5 KV 50 Hz, 15 KV DC for 5 Min.
Temperature Rating: -40 °C up to +120 °C.
Max. Short Circuit Temp.: 200 °C (for 5 sec).
Oil & Chemical resistance: IEC 60811-1.
Bending Radius: > 4 x Ø (Cable OD).

Standards/Material Properties

Fire Performance: IEC 60332-1-2.
Smoke Emission: IEC 61034-2 / EN 50268-2.
(Light Transmission > 60%).
Halogen Free: IEC 60754-1 (HCL content <0.5%).
Generally meets TÜV 2PfG-1169/08.2007 PV1-F.

XLPE /XLPO insulated and XLPE/HFFR sheathed SOLAR PV CABLES (generally confirms TÃœV 2PfG-1169/08.2007 PV1-F)

ATC Conductor		Insulation Thickness	Sheath Thickness	Cable OD	Current Rating
size (Sq.mm)	No/ Dia Of Strand (mm)	mm (Minimum)	mm (Minimum)	mm (Nominal)	Ampere (A)
1C x 2.5	50/0.25	0.5	1.0	4.2	41
1C x 4	56/0.3	0.5	1.0	4.7	55
1C x 6	84/0.3	0.8	1.2	5.5	70
1C x 10	80/0.4	1.0	1.3	6.5	98
1C x 16	126/0.4	1.2	1.5	8.3	132

PVC insulated and UV Protected Rubber sheathed SOLAR PV CABLES (generally confirms TÃœV 2PfG-1169/08.2007 PV1-F)

ATC Conductor		Insulation Thickness	Sheath Thickness	Cable OD	Current Rating
size (Sq.mm)	No/ Dia Of Strand (mm)	mm (Minimum)	mm (Minimum)	mm (Nominal)	Ampere (A)
2C x 2.5	50/0.25	0.5	1.0	9.0	41
2C x 4	56/0.3	0.5	1.0	10.6	55
2C x 6	84/0.3	0.8	1.2	12.6	70
2C x 10	80/0.4	1.0	1.3	16.0	98
2C x 16	126/0.4	1.2	1.5	18.8	132
