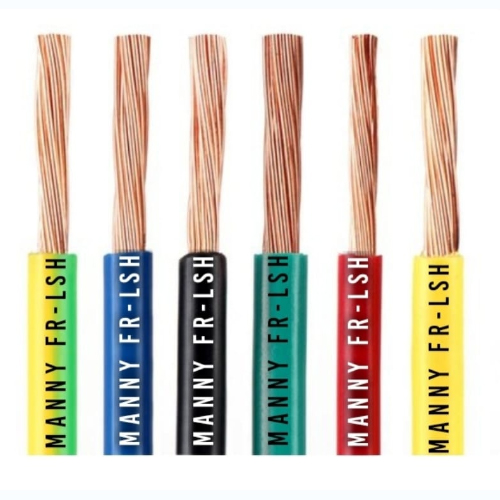

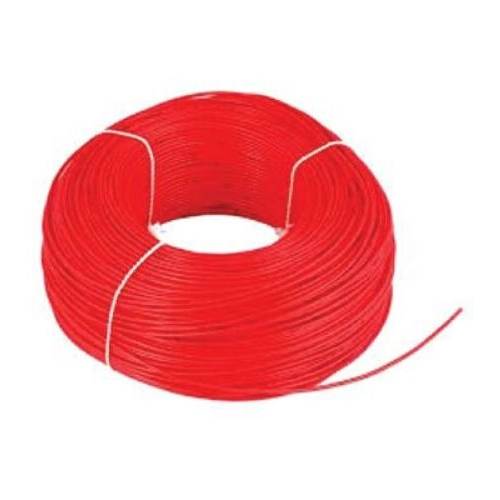

FR/FRLSH Multistrand Wires

Fr Frlsh Multistrand Wires are mainly used for wiring domestic and commercial structures. They are capable of handling 85oC operating temperature since they are insulated with a flame retardant PVC compound (formulated and manufactured in-house). They are also steam and boiling water resistant. The anti-rodent properties of wires make them an ideal choice. They are manufactured using min 99.97% Electrolytic grade, annealed bare copper with more than 100% conductivity. Their fine drawn multi strand conductor provides enhanced flexibility and makes them ideal for concealed wiring. They are suitable for installation in lighting fittings and appliances up to 1100 v (A.C.). These wires work well even in adverse atmospheric conditions. Characteristics like these make HomeCab-FR Wires reliable, energy efficient and highly safe.
Applications
These cables are used for wiring domestic and commercial buildings. The multi strand / solid conductors make it ideal for concealed wiring. It is suitable for installation in lighting fittings and appliances up to 1100 v (A.C)

Advantages
  • Zero Halogen acid gas Evolution.
  • Excellent resistant to tarnishing of copper.
  • Longer Flexible life.
  • High Flame retardant insulation.
Why Fr Frlsh Multistrand Wires
  • Made of 99.99% pure Electrolyte grade bright annealed copper ensure enhanced conductivity.
  • Insulated with in house formulated & manufactured PVC compound.
  • Excellent Fire & Heat retardant characteristics at different working condition.
  • Better reliability, energy efficiency & highest level of safety with high Oxygen Index.
  • Maximum energy saving ensures value for money.
Nominal cross sectional area of conductorNumber/Nominal dia of strandsNominal insulation thickness Max. Overall diameter Max conductor resistance at 20°CCurrent rating
CasingConcealed
Sq.mmmmmm mmO/km AmpsAmps
114 / 0.30* 0.7 3.2 18.1 14 13
1.522 / 0.30* 0.7 3.4 12.1 18 16
2.536 / 0.30* 0.8 4.2 7.41 24 20
456 / 0.30** 0.8 4.8 4.95 32 26
684/0.30** 0.8 6.4 3.30 36 32
